Our Metrology Vision RJCB Consulting services for Interferometers ensure the utmost precision in measurements and analysis, guaranteeing accurate results for your projects.
Phase Shifter Kits
LOOPI Interferometer Phase Shifter Kit
This kit modifies the native LOOPI reference optic mount, inserting a piezo element, for full automatic phase-shifting measurements. Simply ship the reference mount with reference optic to us, and we can return it fully modified in 3-4 weeks. Reference optic replacement is also available.
​
Kit Includes:
​
-
Modified reference mount (embedded piezo element)
-
Cable to/from reference mount and piezo driver
-
RA-150 piezo driver
-
USB cable to/from RP-150 driver and computer
​
Phase Shift Drivers

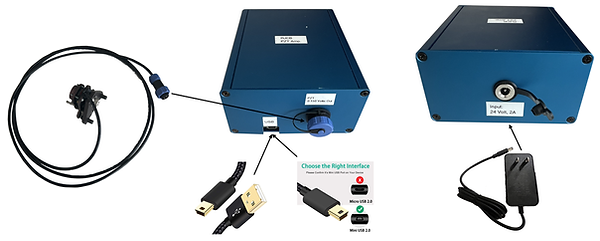

Model RA-150: Single Channel High Voltage Driver
All in one single channel high voltage piezo driver.
​
Specifications:
​
-
USB Interface
-
Single Channel (16 bits resolution)
-
Input Signal 0-3 volts (via. USB)
-
Output 0-150 Volts (Peak 100 ma, RMS 21 ma)
-
24 Volts Power Supply Input
Model RA-10: Three Channel Low Voltage Driver
All in one three channel low voltage piezo driver.
​
Specifications:
​
-
USB Interface (USB powered)
-
Three Channel (12 bits resolution)​
-
Output +/- 10 Volts (20 ma)
